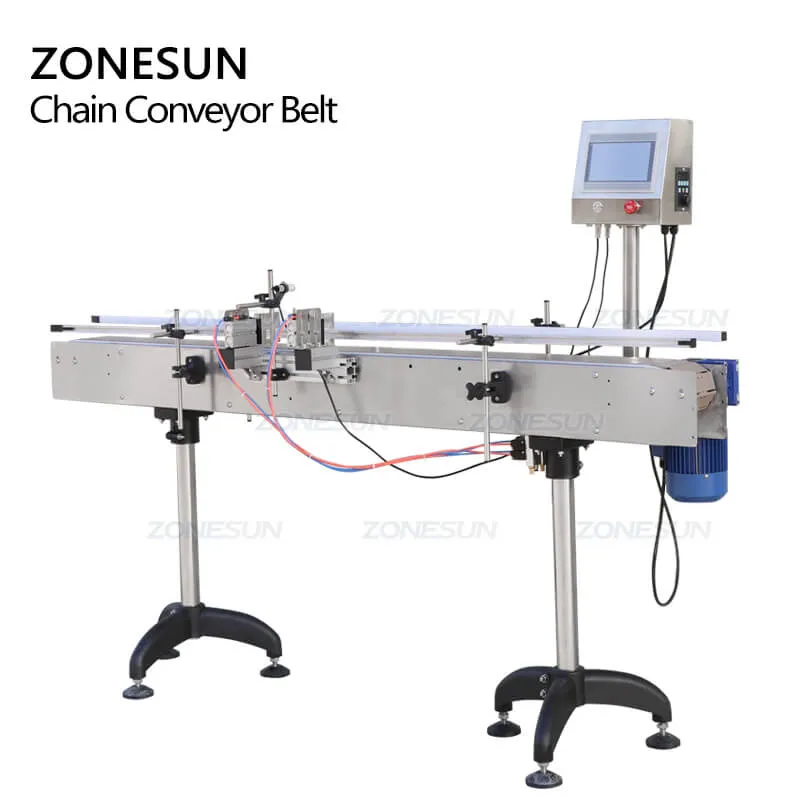

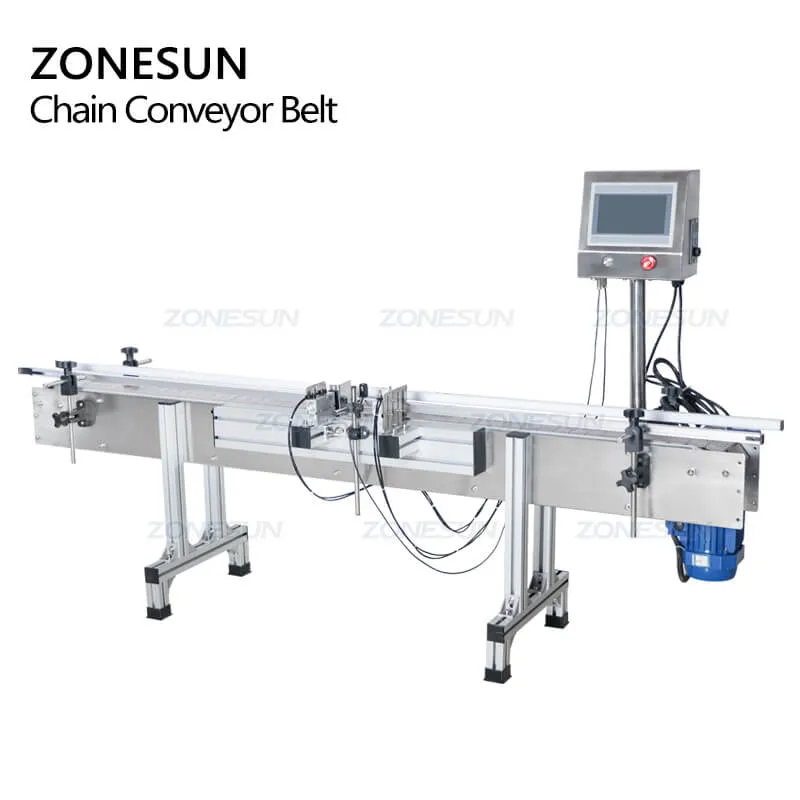

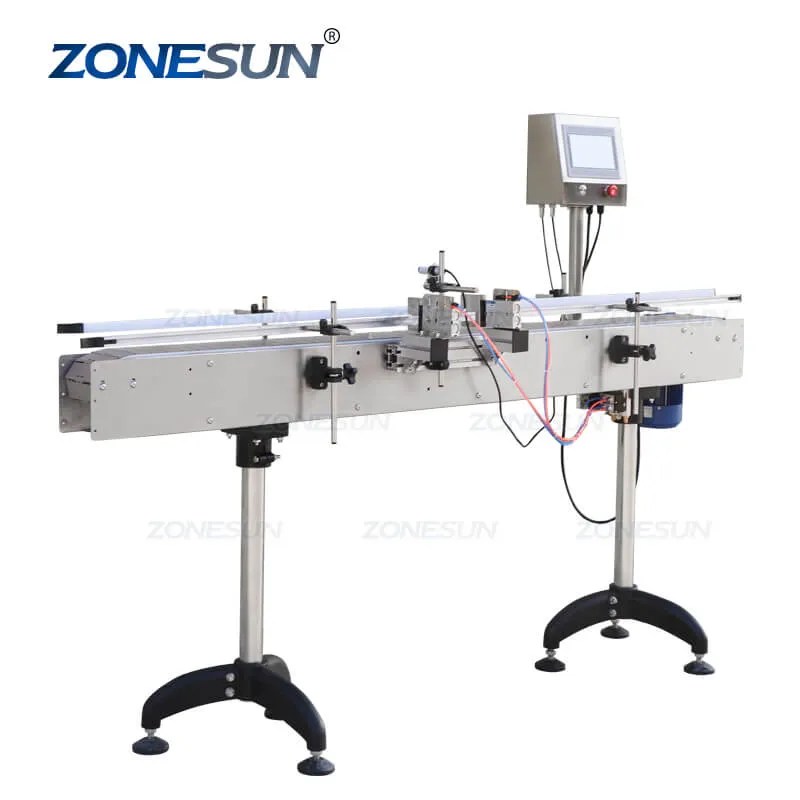

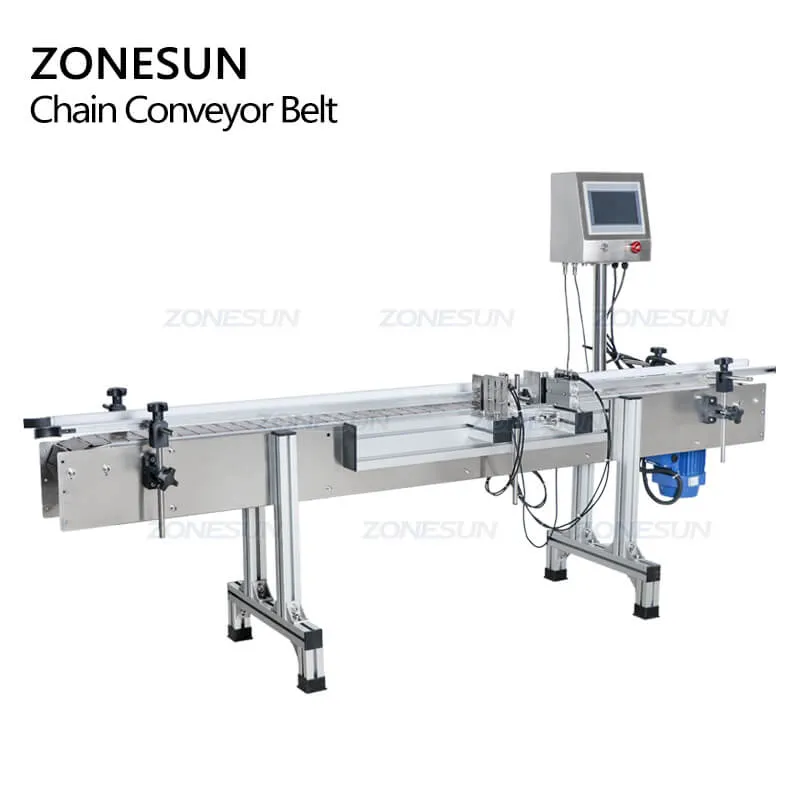

Video For Automatic Conveyor Belt For Filling System
This automatic filling machine is designed for filling liquid into bottles,each filling nozzle can be controlled separately.The automated production improves working efficie
Parameter
- Machine model:ZS-CB100P
- Voltage:220V/110V
- Power:450W
- Rotate Speed:8m/min
- Conveyor Width:About 114mm
- Conveyor Length:About 1900mm
- Working Height:550mm or 900mm
- Package size:About 1960*470*630mm(Only 900mm Conveyor) Package weight:About 73kgs (Only 900mm Conveyor)
The touch screen makes it more easier to adjust the working parameter when testing the machine,the visual working data can reduce production error.

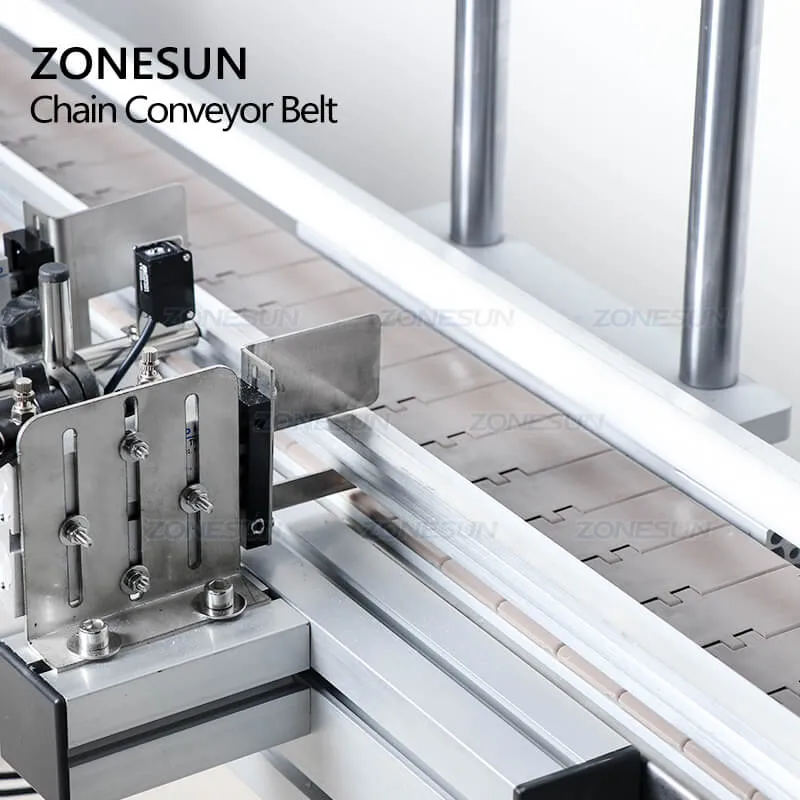

Equipped with high quality electric eye,it can detect pass by bottles/objects and help to control the machine to work,improves working efficiency.
The chain conveyor is with larger weight capacity,this can help to transport product smoothly ,improves working efficiency.
